PI4B adapter Bigtreetech for motherboards used in 3D printers
Share icon
Controller Boards

PI4B adapter Bigtreetech for motherboards used in 3D printers - PI4B + CB1

Product information

₹4,999(Inclusive of all taxes)

In stock

Type

Quantity

No returns available

Additional details

BIGTREETECH CB1:

  • Exceptional performance with its quad-core 64-bit ARM®
  • Cortex-A53@1.5GHz processor and 1GB DDR3 RAM,
  • Powerful Enough to run Linux
  • Support Debian
  • Programmable


Product parameters:

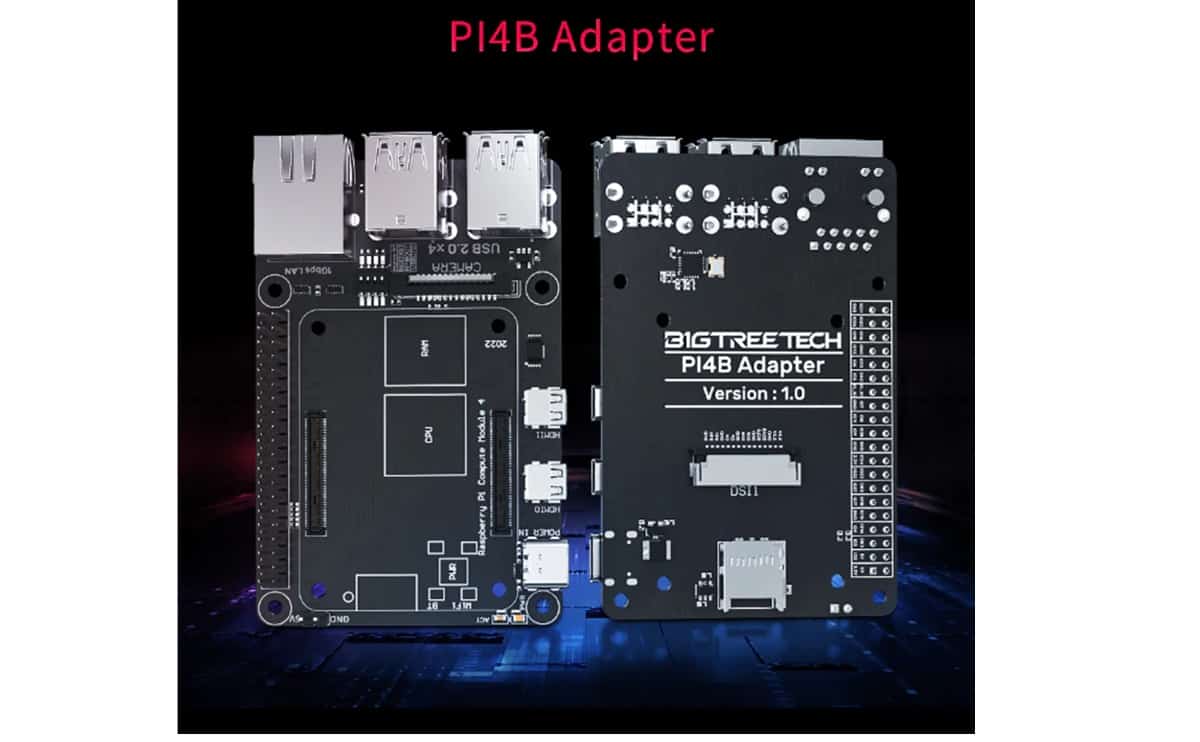

PI4B Adapter

  • Power Input: Type-C 5±0.25V
  • Support: BIGTREETECH CB Series, all versions of Raspberry Pi CM4
  • Interface: Micro HDMIX2, USB 2.0×4, RJ45, DSI CSI, Micro SD, etc

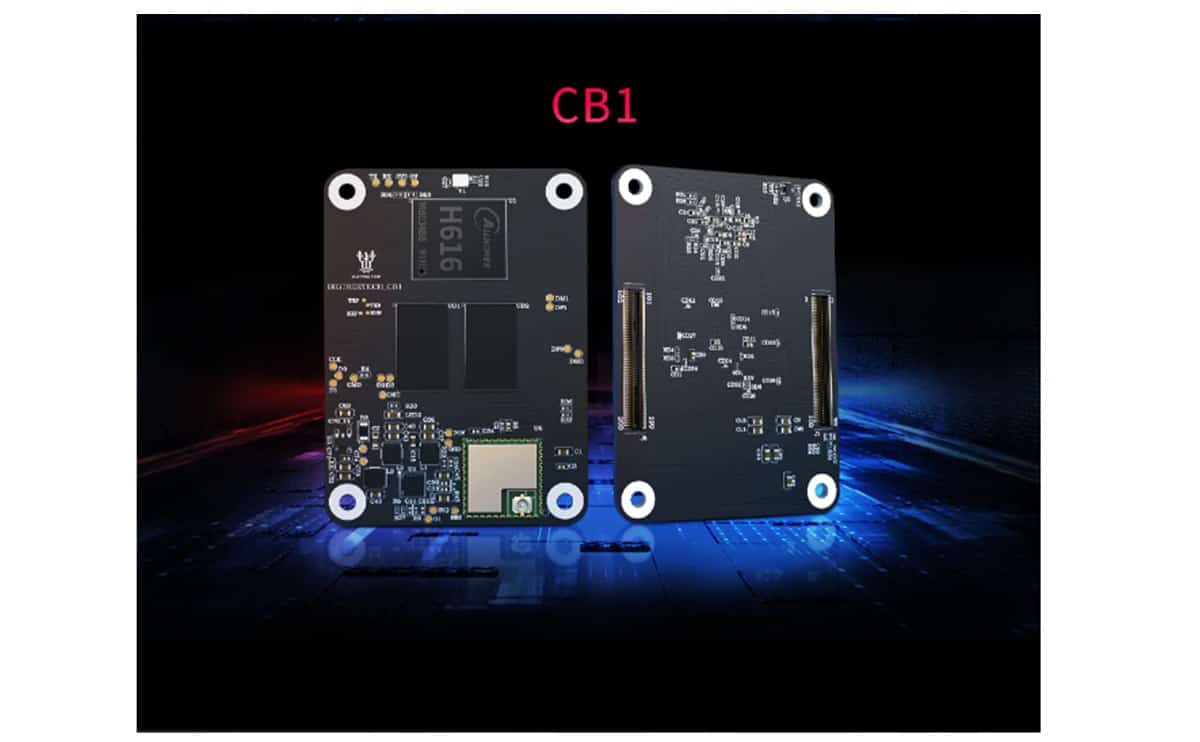

CB1

  • CPU: Allwinner H616, Quad-core Cortex-A53 @1.5GHz
  • GPU: Mali G31 MP2, support OpenGL3.2
  • RAM: 1GB DDR3L SDRAM
  • Display: Support HDMI2.0A output, 4K display
  • USB: 2.0
  • Network Support:100M Ethernet + 100M WiFi

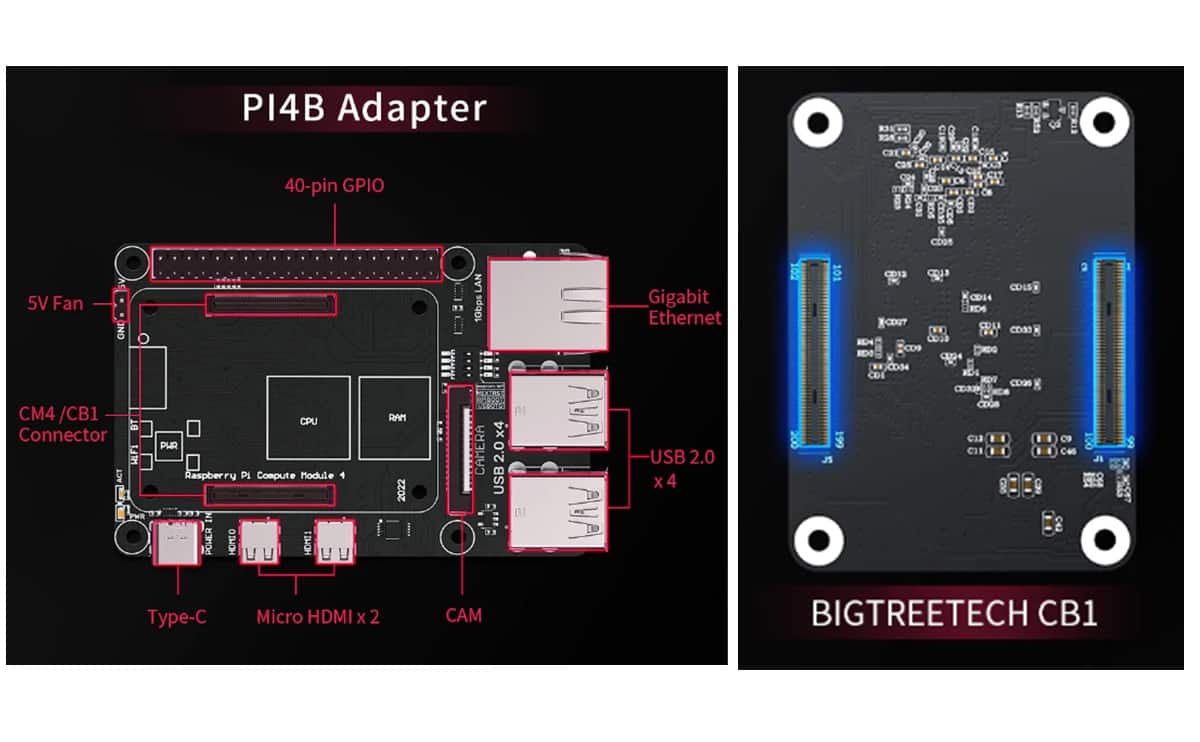

Main Features PI4B Adapter:

  • Standard Raspberry Pi CM4 Socket Fit for all versions of CM4
  • Full Connectivity Onboard 1000M Ethernet port, CSI camera port, dual Micro HDMI, etc.
  • Type-C Power Supply Port Easy to write system, stable power supply
  • 40-pin GPIO Connect with external input/output peripheral devices
  • STL File of PI4B+CB1 Case users can download and print on their own

Features of CB1:

  • ARM Cortex-A53 1GB DDR3 64-bit 1.5GHz High speed and high stability.
  • Heatsink for CB1 (On sale) Efficient heat dissipation to ensure stable operation of CBl.
  • HDMI 4K UHD Output High-performance details and clarity.
  • Support 100M Ethernet + 100M WiFi For network connectivity
  • The Highly Cost-Effective Way to Run Your Klipper
  • PI4B Adapters working with the CB1
  • The combination of the PI4B adapters, CB1, and BIGTREETECH motherboard can run Linux, thus offering a highly cost-effective way to run your Klipper.


Item code : PI4BCB1
