Name: BIGTREETECH Manta M5P BTT Control Board
Brand: Panther3D
SKU: PAN-033
Price: 4699 INR
Availability: InStock

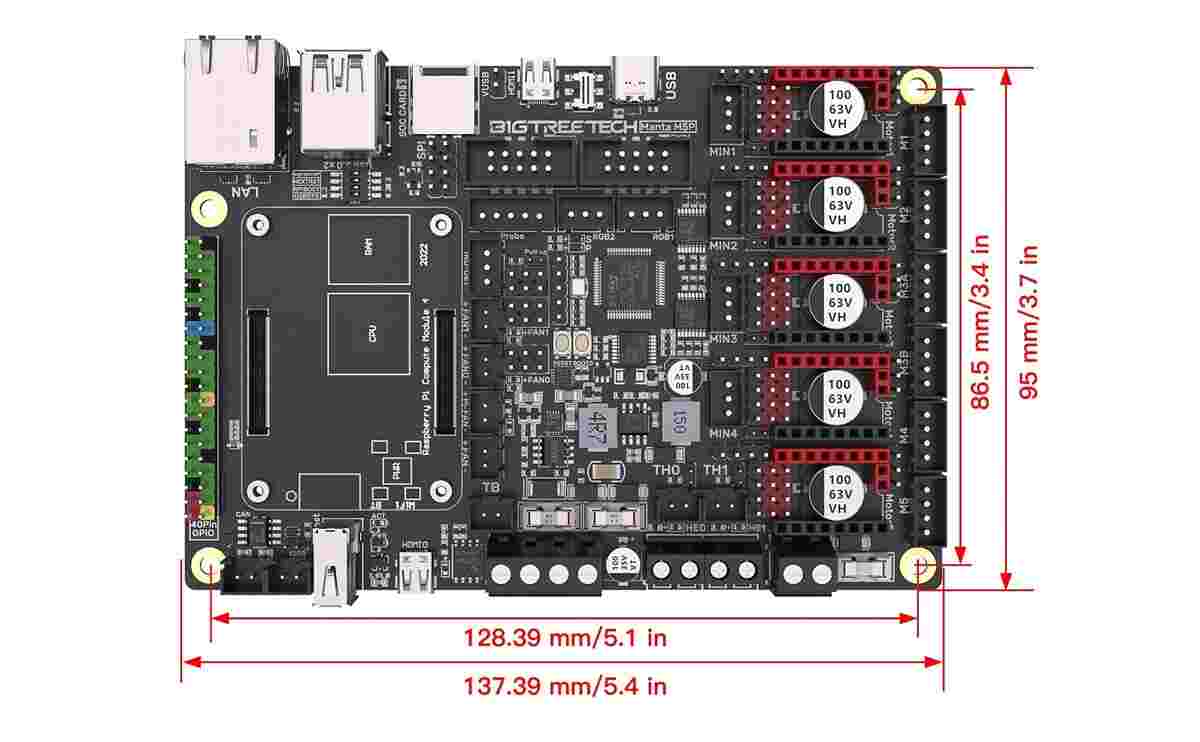

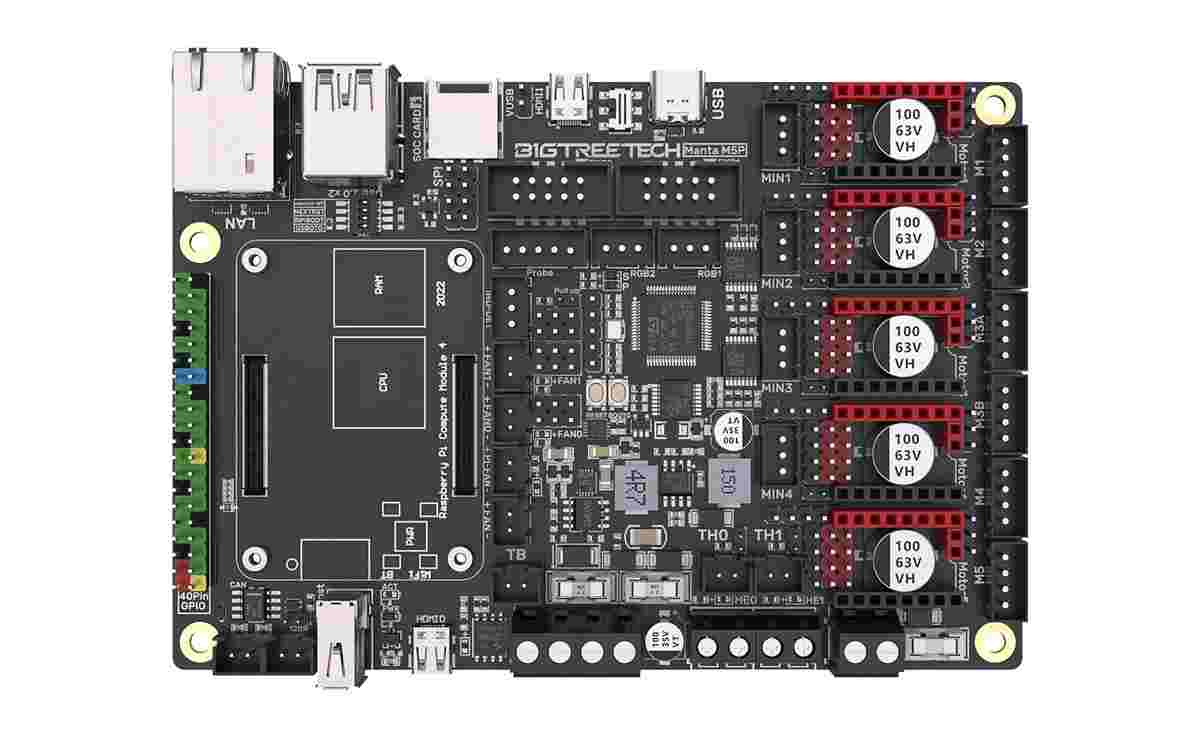

BIGTREETECH Manta M5P BTT Control Board

The BIGTREETECH MANTA M5P BTT Control Board is a high-performance board designed to optimize the functionality and protection of your 3D printer.
Powered by a 32-bit 64MHZ ARM Cortex-M0 Series-STM32G0B1RET6 chip, this board offers exceptional speed and reliability.

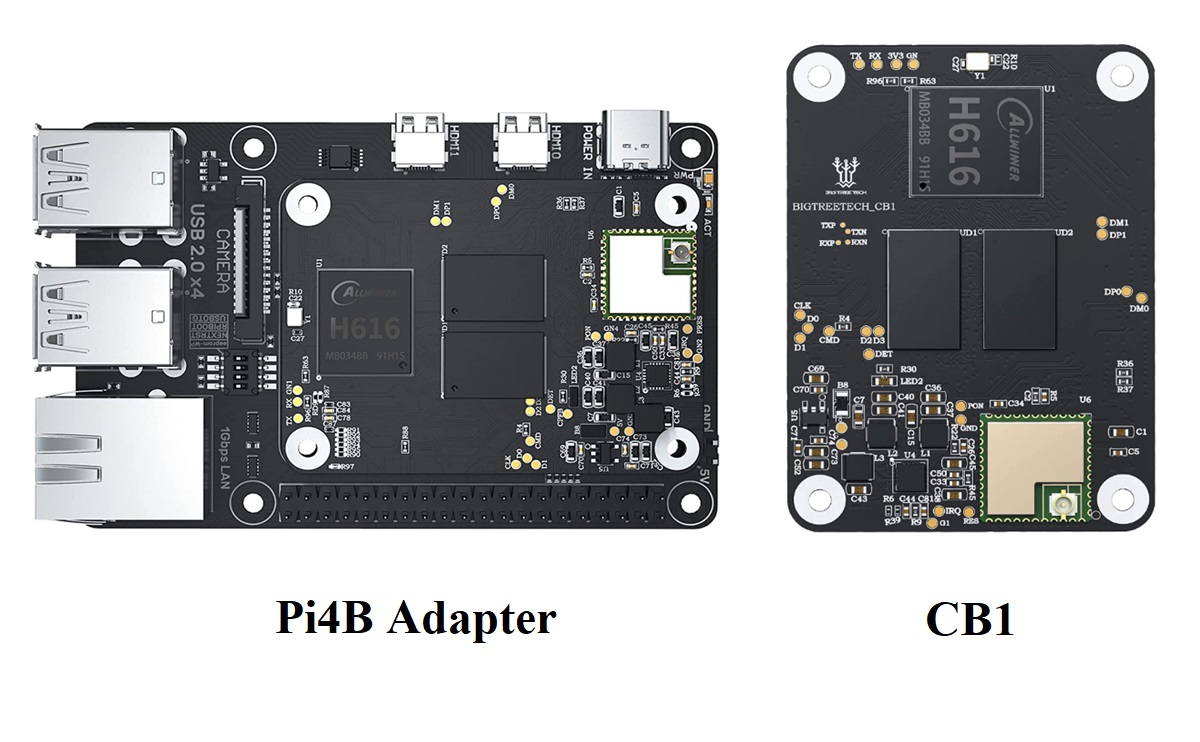

One of the standout features of the Manta M5P is its compatibility with Marlin firmware without the need for CB1/CM4.
This allows for seamless integration and easy setup. Additionally, the board supports 5-axis stepper motor drivers, providing enhanced control and precision.

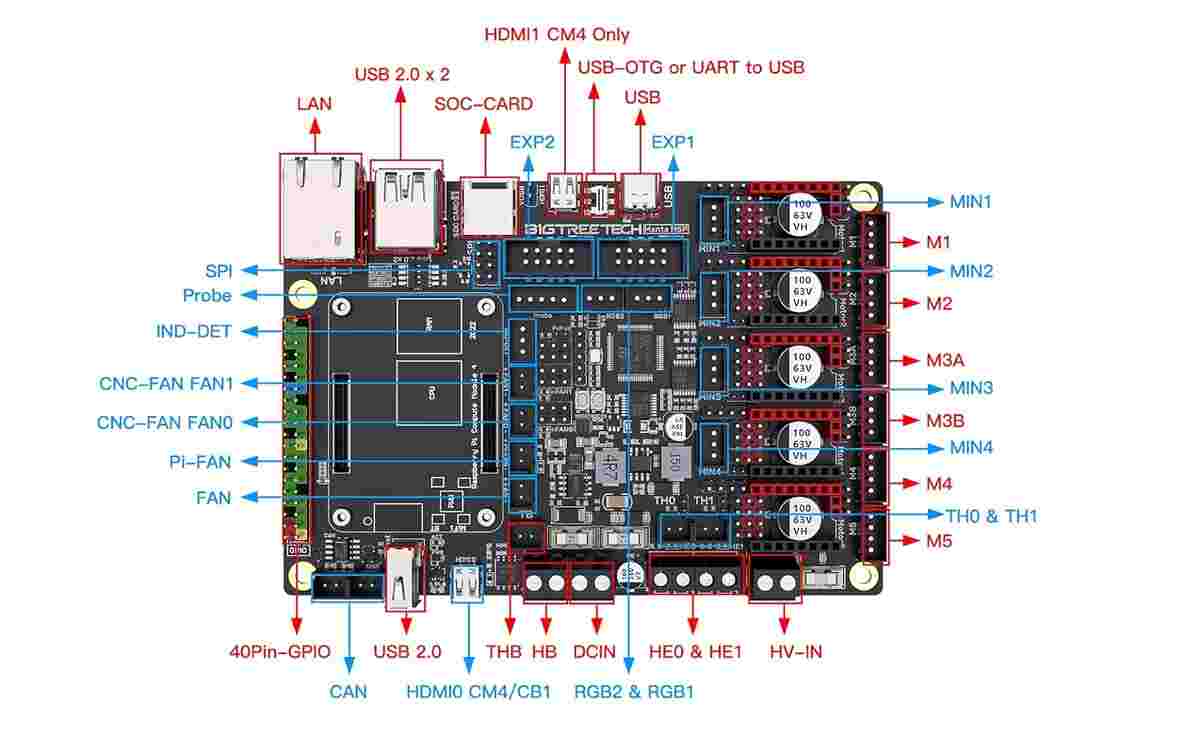

The Manta M5P is equipped with integrated SPI and UART modes of TMC driver and DIAG pin, which can be easily configured using jumpers.
This flexibility allows for effortless customization and adaptation to your specific needs.
The board also supports CAN Bus, allowing for simplified wiring and providing strong anti-interference capabilities.
With an onboard SPI interface and proximity switch port, the Manta M5P enables the connection of an acceleration sensor, enabling Klipper’s input shaping.

Enhances the overall performance and accuracy of your 3D printer.
The Manta M5P Board includes an eFuse circuit protection system.
This system ensures that the board disconnects quickly in the event of an overload, reducing the risk of motherboard burnout caused by short circuits or ignition.
The board also offers a screw-reinforced installation option, adding stability and reliability to your setup.
Integrated SPI and UART mode of TMC driver and DIAG pin, easily configurable with jumpers.
Support filament runout sensor, BLTouch, RGB, etc.
Replaceable fuse for easy maintenance.

Item code : PAN-033

Product information
