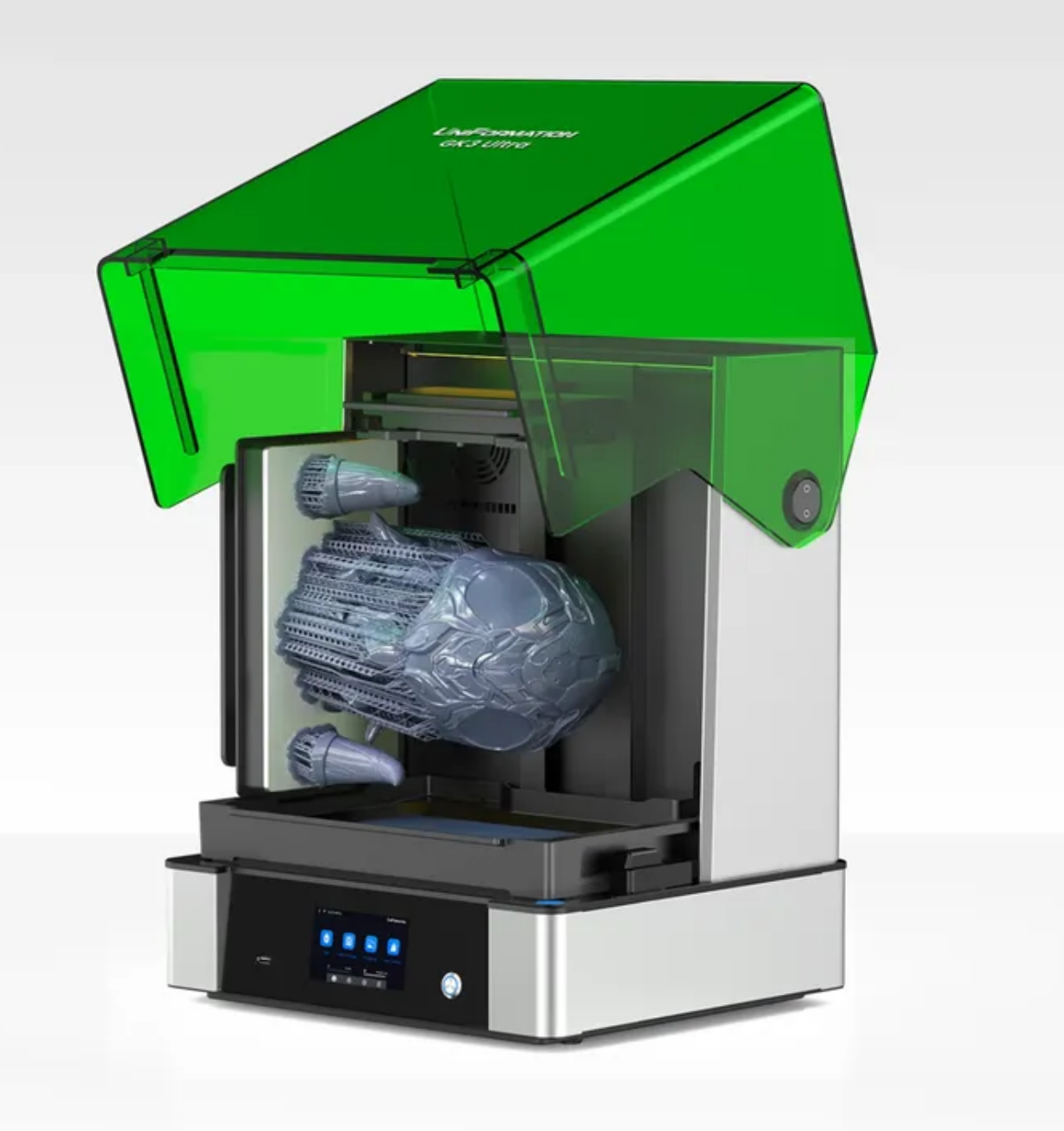

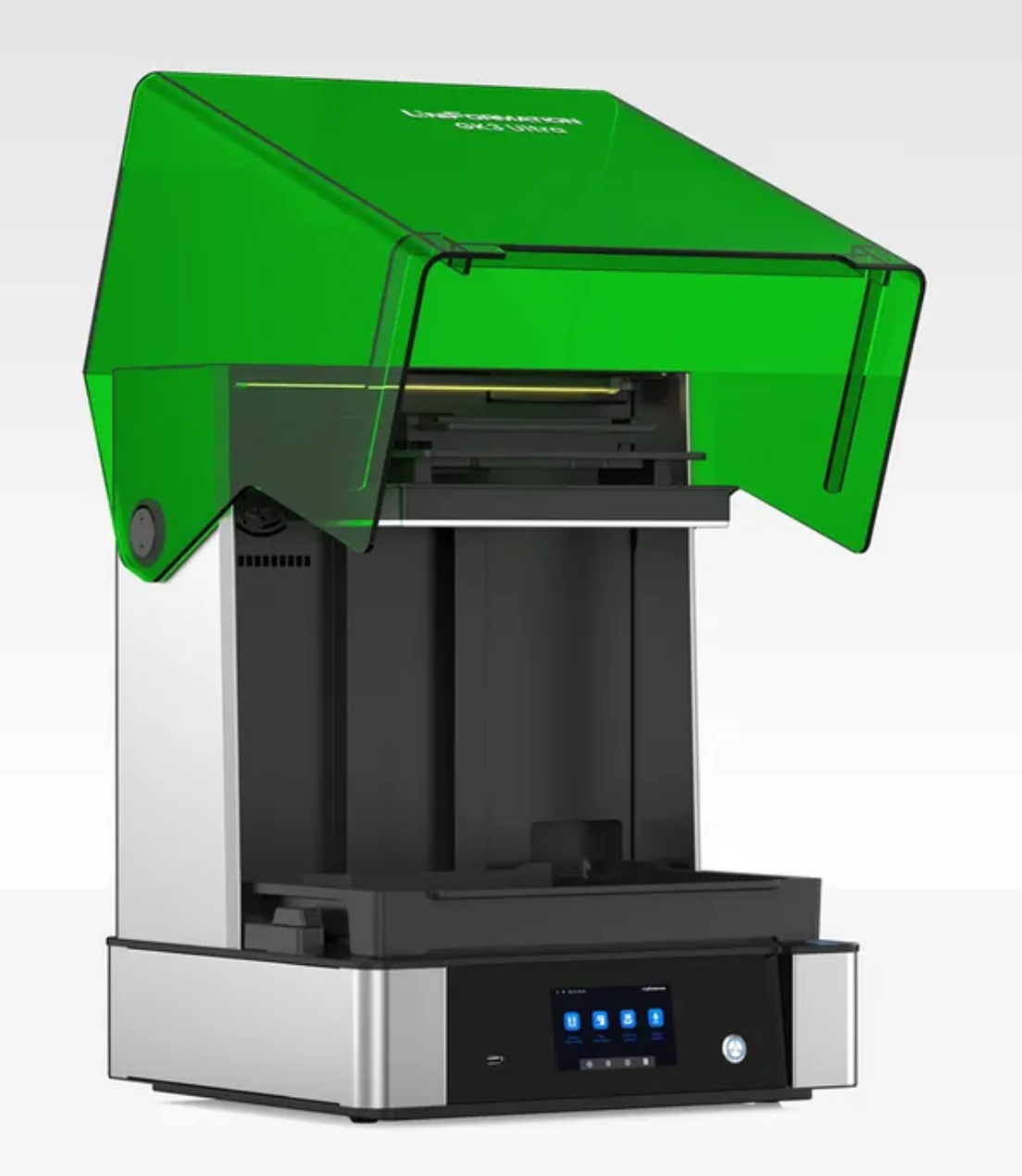

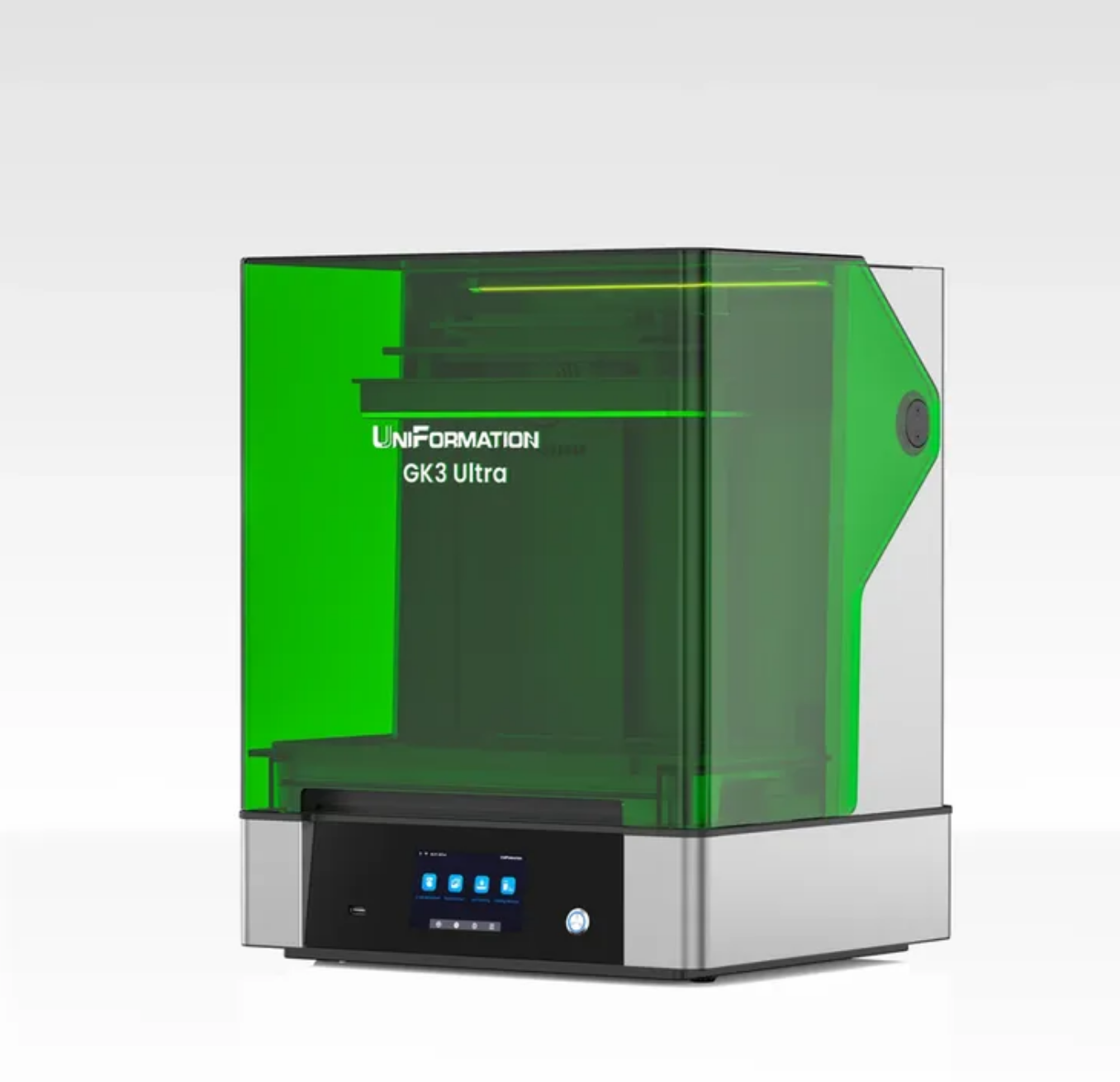

Uniformation GK3 Ultra

16K Resolution Display

Generous Build Volume

Enhanced Print Quality for large scale printers

User-Friendly Design

Innovative Resin Management

Anti-Spill Resin Vat

Integrated Carbon Filter

Connectivity and Control

Technical Specification:

Product name GK3 ultra Layer thickness 0.03mm-0.05mm

Touch screen 5-inch capacitive touch screen Exposure speed 2-3s/layer(0.05mm)

Slicing software UniFormation Slicer, Chitubox, Lychee Pixel size 20*26um(AVC 26um)

Connection USB stick, WiFi file sharing, Ethernet Product dimensions 455*400*575(mm)

Technology Masked SLA(M-SLA) LCD Screen Curing Maximum print volume 300*160*300(mm)

Screen size 302.4*161.98mm(16K 13.5”) Official resin compatability Standard Resin(Black, white, Grey,

Clear, OrangeDark Grey

, Red Wax)

ABS Resin (Black, White,

Grey, Clear,Clear Blue)Flexible Resin(Black, white)

XY resolution 15120*6230 Resin box capacity 1.2kg

Maximum heating temperature 25°C,30°C Resin vat capacity 1100ml

Product weight 30KG Printing power consumption 200W
